1. Tannin Polymerization and Depolymerization. Historically, winemakers have thought the distribution of various sized tannins depended mainly on the degree of fruit maturity.

It was assumed that as fruit maturity increased, there was an increase in the degree of polymerization (DP number) or extent of tannin binding. We further assumed that a certain level of fruit maturity was needed to create a certain size tannin molecule, and that tannins simply got bigger and more polymerized as maturation progressed.

We now know that condensed grape tannins are not stable, and that in the acid environment of wine, they can undergo polymerization as well as hydrolysis or depolymerization.

Therefore, during wine processing there can be modifications in the DP number. This helps to explain some of the sensory changes that occur during wine aging.

2. Color and Tannin Polymers.  Much of the fruit harvested this season in the Virginia region appears to be relatively low in red color. The question is, what is the relationship between the anthocyanin content of the fruit and resultant wine color?

As outlined in previous editions of Enology Notes (#85, 118), spectral color in wine is a function of three elements:

  • anthocyanin concentration
  • concentration of cofactors, or certain non-colored compounds, which bind with anthocyanins to cause copigmentation
  • polymeric pigments

In grapes and wines, anthocyanin pigments can be either free molecules, unbound monomers, or associated with other phenols, such as tannins, to form polymeric pigments.

Binding with other phenols can impact the sensory quality of anthocyanins by increasing color stability, and by changing the spectral color from bright red to brick-red. Indeed, the formation of pigment polymers is a reason why young red wine color changes.

Several years ago, an interesting red wine color phenomenon was noted, which is illustrated below (Ribereau-Gayon and Glories, 1983).

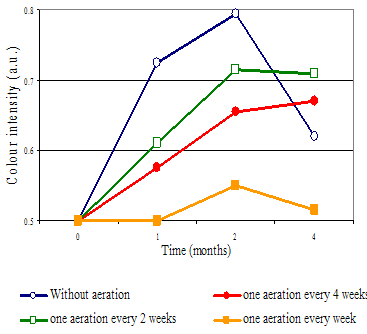

Figure 1: Color Intensity Over Time

Wines made without any air or oxygen exposure developed more red color initially, but soon the color declined. In other words, the red color was not stable.

Conversely, red wines produced with some air exposure developed more color and color stability, while too much exposure demonstrated loss of color.

Clearly, oxygen was playing a strong role in red wine color formation and stability. The question is, what is the role of oxygen in color, and how much oxygen is needed for optimizing color?

Oxygen helps to form cross-links between anthocyanins and tannins, thus helping to stabilize color. How much oxygen is desirable depends on the percentage of anthocyanins in the monomeric (non-polymerized) form, among other factors.

In solution, the unbound anthocyanin molecule is positively charged, which enables it to absorb light, and thus have color. Anthocyanins have a carbohydrate (sugar), usually glucose, attached (esterified) at the 3-position. The presence of this sugar helps the anthocyanin maintain solubility and stability.

If the sugar is hydrolyzed or lost, the solubility and stability decrease. What is equally important for red color is the association of this molecule with tannins and other phenols. There are several mechanisms (oxidative and non-oxidative) by which pigment polymers are formed.

One example illustrates the role of tannin depolymerization. If a tannin of DP-10 size is hydrolyzed under acidic conditions in wine, it can break up to shorter lengths, such as two DP-5s.

In such a case, the hydrolysis would produce one electron-neutral and one positively-charged tannin.

Depending on the concentrations of available tannins and anthocyanins, the positively-charged tannin will react with either another tannin or an anthocyanin molecule. This explains why the ratio of tannin to anthocyanin in the must is important, regarding color and color stability (see Enology Notes #116, 118).

If it reacts with another tannin, a longer non-colored polymer will be formed.   However, the process is different if it reacts with an anthocyanin. If the anthocyanin reacts with a tannin, this new larger anthocyanin-tannin polymer acts as an electron sink and stabilizes color.

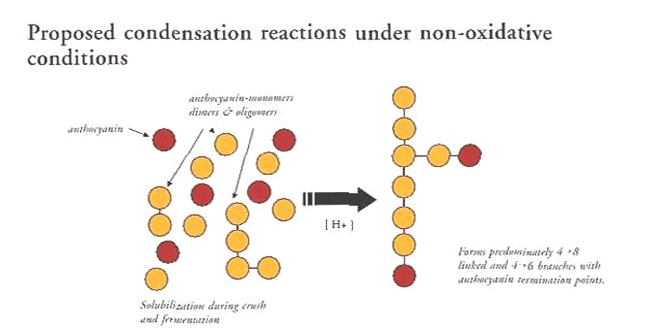

Figure 2: Proposed Condensation Reactions under Non-oxidative Conditions

Source: McCord, 1990

A unique aspect of this binding is that the anthocyanin molecule is no longer available to react, and the anthocyanin acts as a terminus for any further reaction at that end of the polymer (McCord, 1990).

In addition to the direct reaction described above, anthocyanins and tannins can be linked by aldehydes. This is the basis for microoxygenation’s impact on color and stability.

Aldehydes are able to act as cross-linkers, binding anthocyanins and tannins. Many aldehydes can be derived from toasted oak. Aldehydes are also produced as a result of ethyl alcohol oxidation, which occurs during wine microoxygenation.

Thus, microoxygenation (including splash racking) of very young wines (when there is a high percentage of monomeric or unbound anthocyanins) can aid in color and color stability, as a result of oxidative formation of anthocyanin-tannin pigment polymers.

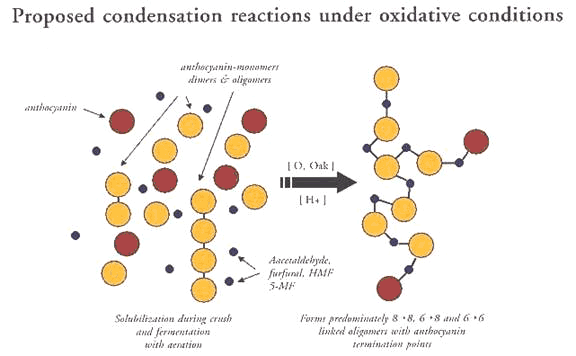

Figure 3: Proposed Condensation Reactions under Oxidative Conditions

Source: McCord, 1990

As these two figures indicate, there is a structural difference in tannins cross-linked with aldehydes, versus reductively-formed tannin pigment polymers.

Anthocyanin-tannin polymers stabilize themselves through stacking and aggregation. Pigment polymers formed differently (oxidatively vs. non-oxidatively) may aggregate differently (see figures).

The many kinks added into the polymer by cross-links with aldehydes may prevent tight association.

More to follow.

3. Enology Service Lab New Equipment - Segmented Flow Apparatus. A Segmented Flow Apparatus is currently being installed in the Virginia Tech Enology Analytical Services Laboratory. This type of equipment is relatively new to enological analysis. A wine sample is drawn into the machine and divided into segments or bubbles. These bubbles are individually analyzed for wine components. Initially, we will use this system for sulfites and volatile acidity.

Sulfites – The Segmented Flow Apparatus can measure both free and total sulfites. The advantage is in both the method and speed. Many wineries use Ripper titration. The drawback for this procedure is that certain wine components interfere with the results, providing false high readings.

The TTB-accepted method for the accurate reporting of both free and total sulfites is Aeration/ Oxidation. The Segmented Flow Apparatus is unique in that it uses a combination of dialysis membranes and heat cartridges to perform the Aeration/Oxidation procedure on a small, although highly accurate, scale. Performing the standard procedure on a wine sample in duplicate takes approximately one hour. The Segmented Flow Apparatus reduces this to approximately one minute.

Volatile Acidity – Volatile acidity analysis is the quantification of the total volatile acids present in wine, but it is reported as grams of acetic acid per liter. This can be slightly deceiving, in that there are more volatile acids in wine than just acetic acid.

The common method for measuring these acids is to steam distill the wine and collect the volatile acids that are released, using a Cash Still.  To perform this procedure takes about 45 minutes.  The Segmented Flow Apparatus performs the same method, on a smaller scale, in less than one minute.

Another advantage of Segmented Flow is its expandability to monitor a wide range of wine components. This range is expanding monthly as the technology improves and is verified.
